Sealant Injection Fitting – 1/4" SS

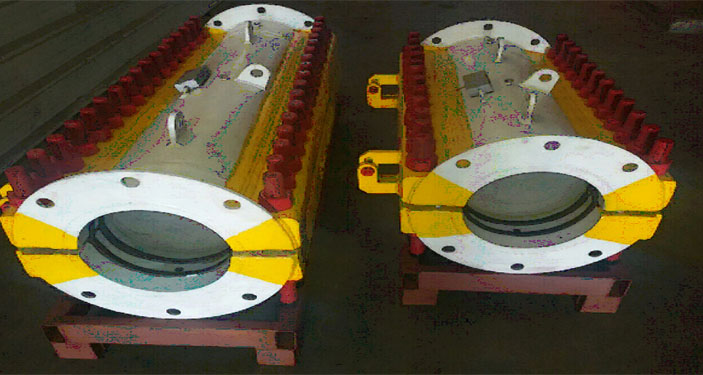

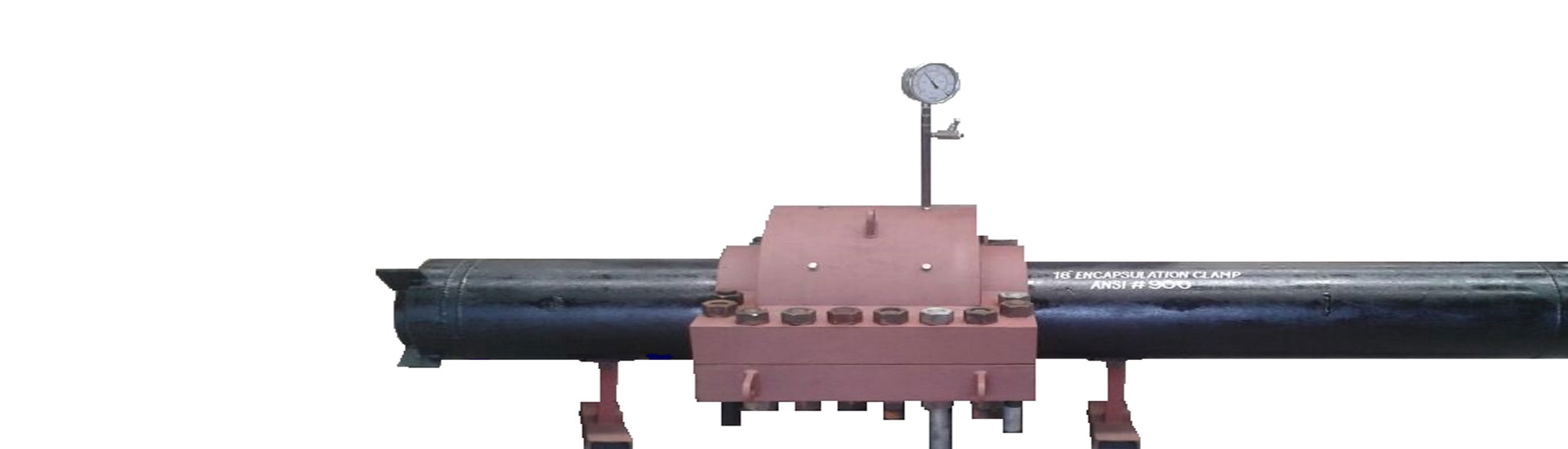

Pipeline Repair Clamps are designed and manufactured for Emergency Leak Sealing Services.
Clamps can be made to Fit Pipeline Fitting viz Bends, Tees, Flanges and Monolithic Isolation Joints.
All clamps are Hydro Tested prior to despatch and seals can be changed subsequently.
Clamps are manufactured with a three Layer Marine Epoxy coating. Coating can also be tailor-made to suit customer requirement.
Hydraulic actuated opening and closing clamps are available on request.
Technical Data
| Design Code | : | ASME Sec VIII Division I and API 6H |
| Size | : | 2 inch to 56 inch |
| Length | : | Up to 6 meters (Sealing length). |
| Pressure Rating | ANSI 150 to ANSI 1500 |
| Shell | : | ASTM A 516 Gr 70 |
| Flanges | : | ASTM A05 |
| Seals | : | Buna N, HNBR, Fluoro Elastomer |
| Studs and Nuts | ASTM A193 B7, ASTM A194 2H, PTFE Coated or Electroplated |
